Industrial-Grade Strength
Fast Modular Installation
Integrated Waterproofing

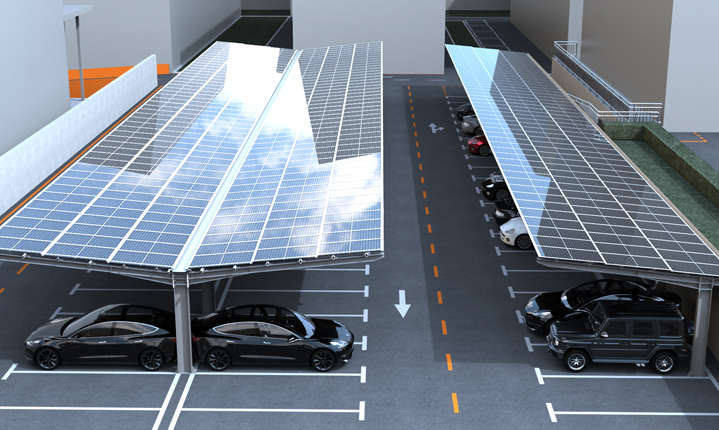

The Umax Atlas Series Modular Heavy Steel Commercial Solar Carports are purpose-built for industrial-grade strength and optimal solar energy capture. Crafted from premium heavy-duty steel, they deliver structural integrity, rapid modular installation, and integrated waterproofing—providing a future-ready solution for high-demand commercial and industrial solar applications.

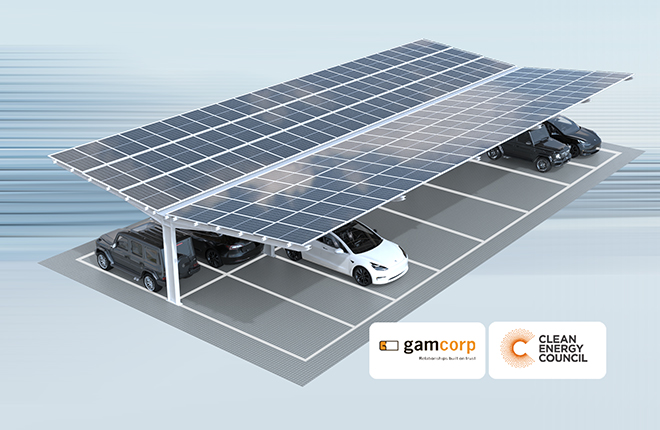

The Atlas Series features a heavy-duty structure certified by Gamcorp, paired with CEC-certified solar panels—ensuring structural integrity, safety, and reliable solar output across commercial and industrial applications.

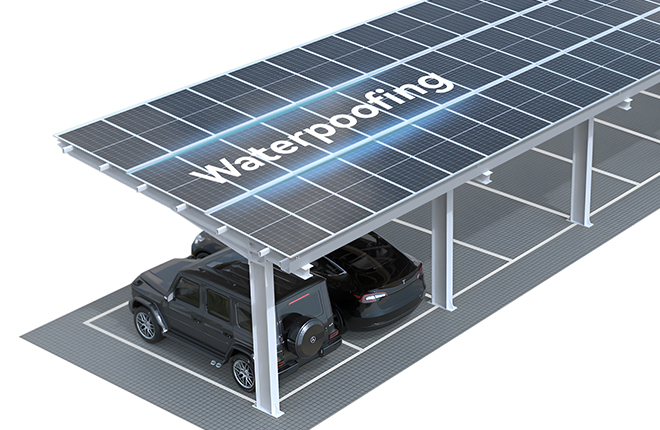

The Atlas Series integrates waterproofing into both its structure and solar panels, preventing leaks and ensuring all-weather protection for long-term commercial performance.

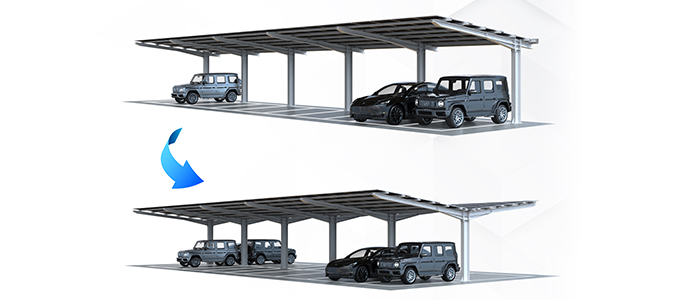

The Atlas Series features an expandable modular system with easy-to-assemble units, offering single or double-sided configurations to meet various space and power needs—providing a tailored solution for any commercial carport setup.

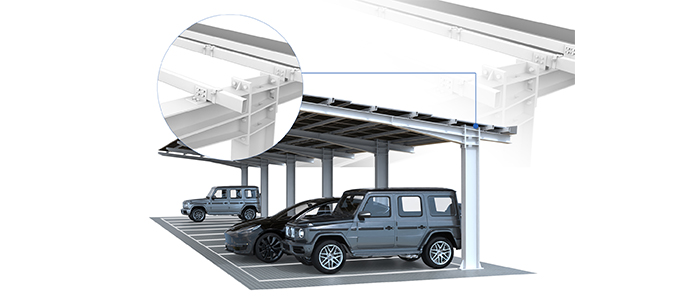

The Atlas Series utilizes pre-fabricated bolted modules, streamlining assembly and ensuring precise, sturdy connections for quick and efficient installation with minimal on-site labor.
With a long-lasting steel structure and minimal maintenance requirements, the Atlas Series delivers reliable solar power and long-term energy savings—maximizing your return on investment while cutting energy costs year after year.
| Structural Parameters | |
|---|---|
| Material | Heavy Steel |
| Design Standards | AS/NZS1170 & AS4100(AU) |
| Wind Load Capacity | Region A,B&C Configurable per site |
| Design Life | 25 Years |
Single side (10 Parking Space) |
Double side (20 Parking space) |
|
|---|---|---|
| System Size | 38.52 kW | 77.04 kW |
| Length | 6360 mm | 12720 mm |
| Structure Width | 2600 mm | 2600 mm |
| Total Panel Width | 26000 mm | 26000 mm |
| Clearance Height | 3000 mm | 3000 mm |
| Peak Height | 4200 mm | 4200 mm |
| No. of Panels | GoodWe Polaris 535 W x 72 PCS | GoodWe Polaris 535 W x 144 PCS |
| Footing | At least 700mm diameter pier with 2000mm depth | At least 800mm diameter pier with 2500mm depth |
Do you have any questions about this solution? Let’s discuss it together.
Designed for large-scale commercial and industrial projects.
Built with heavy-duty industrial-grade steel—strong, durable, and visually appealing. Transforms space into a power-generating station and supports future integration with EV chargers for expanded commercial use.
Yes. Modular, pre-fabricated structure requires no on-site welding—ensuring fast and safe installation.
15-year quality warranty covering both the structure and solar modules.
