Fast to unfold
Folding arrays reduce on-site assembly and pack down for the next move.
Solar power.
Where you need it.
Fast to unfold. Built to relocate and reuse. Choose compact Mini or project-scale Plus, with storage and power-system options for your site.
INSTALLED SOLAR CAPACITY5.7 kWp
SOLAR ARRAY10 × 570 W
WEIGHT350 kg
TRANSPORT FORMATWheeled frame
Deploy. Generate. Move again.
Reuse across sites
Relocate your solar equipment as projects finish or power needs shift.
Less ground disturbance
Deploy with less extensive site works than a permanent ground-mounted installation.
Reduce diesel reliance
Combine solar with storage and, where needed, generator backup to reduce fuel use.
Choose the scale.
Plan the system.

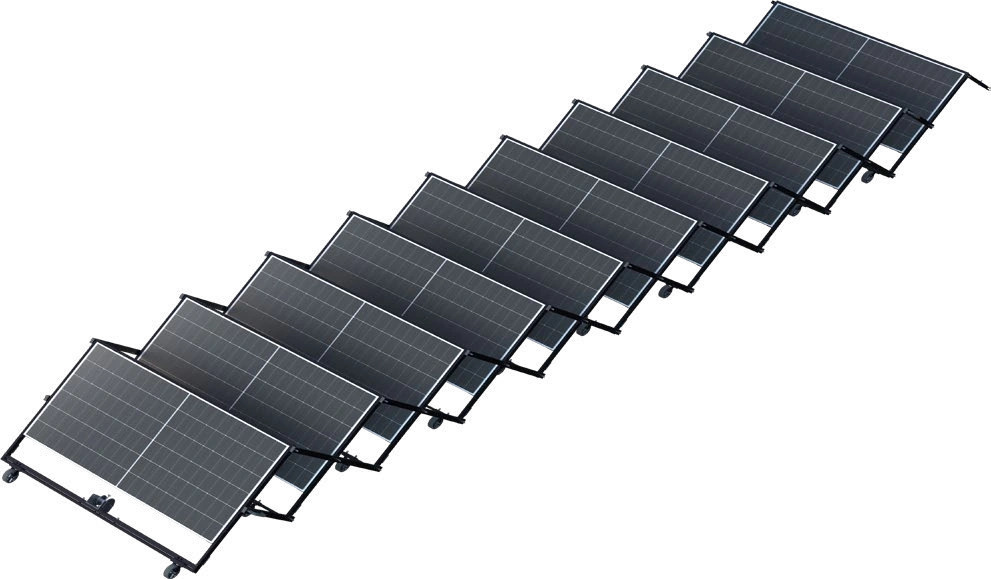

Lightweight power on the move.
A folding 5.7 kWp array for campsites, holiday accommodation, courtyards and rural homes. A wheeled aluminium frame makes repositioning easier.
1 minUnfold
1 minFold away
2 peopleOperation
- 350 kg aluminium frame with integrated wheels
- Low-noise solar generation without exhaust at the array
- Replaceable modules and parallel expansion options

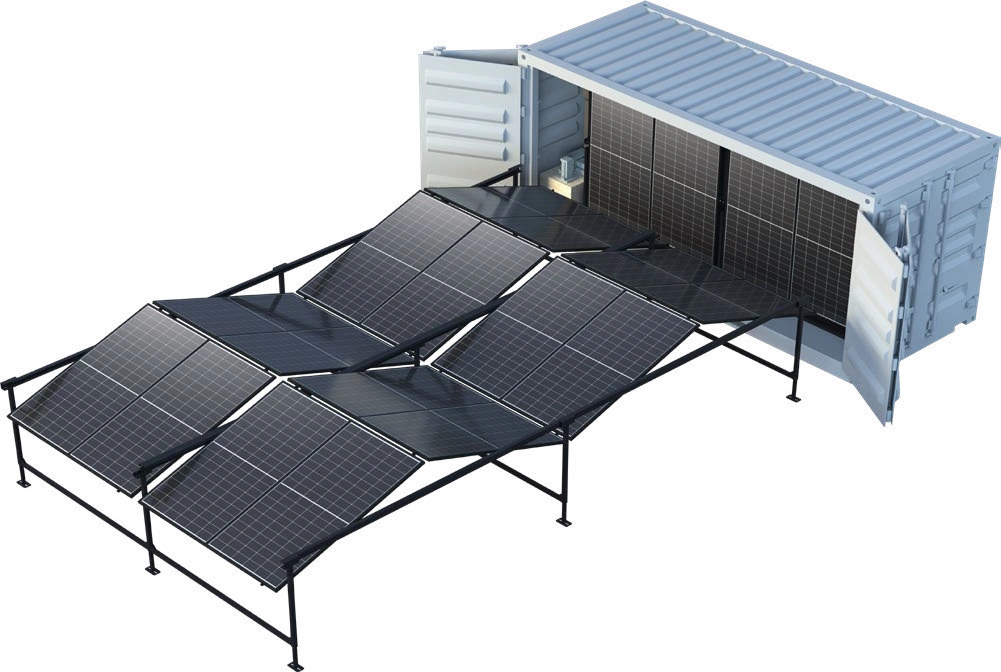

Project-scale mobile power.
A 91.2 kWp, 160-panel solar field transported in a 20ft High Cube container. Fold, relocate and reuse it across worksites, mines and remote facilities.
10 minUnfolding
12 hoursDeployment*
20ft HCTransport
- OASISLIFT™ adjustable elevated support structure
- Flexible layouts with less extensive ground preparation
- Simple mechanical design and corrosion-resistant structure
*Manufacturer deployment figures. Mini unfolding and folding are separate operations. Actual installation time depends on site preparation, connections and commissioning.
Where will you
put it to work?
From campsites to remote operations, find the right scale for your site.
OASIS MINI
Camps & Stays
Flexible solar for camp lighting, communications and small appliances.
OASIS MINI
Homes & Rural Properties
Solar for courtyards and rural homes, with flexible placement beyond the rooftop.
OASIS PLUS
Worksites & Mines
Deploy solar beside site facilities, then relocate it as projects change.
OASIS PLUS
Islands & Remote Sites
Combine solar and storage to reduce reliance on delivered diesel.
Application visualisations
Solar, storage and backup.
Configured for your site.
Three operating approaches, with inverter, battery and energy-management options matched to your loads.
Independent site power
Combine solar, an inverter and battery storage for sites without mains power. Add diesel backup where the load requires it.
Remote sites & island microgridsUse solar on site
Connect the solar system to a suitable site supply to support daytime demand and reduce grid energy use.
Sites with an existing grid supplyPlan for interruptions
Specify storage and switching equipment to support selected loads when grid power is interrupted.
Sites with an unreliable supplyInverter, battery, generator, switching and monitoring equipment are selected for your project. Share your loads and location to define the package.
Discuss Your SystemMini and Plus, side by side.
Compare transport dimensions, deployed footprint and array specifications.
Mini & Plus specifications
| Specification | Mini | Plus |
|---|---|---|
| Installed PV capacity | 5.7 kWp | 91.2 kWp |
| Solar panels | 10 × 570 W | 160 × 570 W |
| Weight | 350 kg | 13 t |
| Folded dimensions | 2.44 × 0.845 × 1.64 m | 6.058 × 2.438 × 2.896 m |
| Deployed dimensions | 13.8 × 2.44 × 0.523–1.64 m | 45 × 11.88 × 1.4–1.85 m |
| Structure | Aluminium alloy | Q235B carbon steel |
| Panel tilt range | 15°–90° adjustable | 0°–60° adjustable |
| Transport format | Wheeled folding frame | 20ft High Cube container |
PV nameplate capacity is not continuous output. Final equipment, deployment clearances and anchoring are confirmed for your site.
Take a closer look.
Manufacturer specifications and product features.
From transport
to working solar.
Plan access, deployment and connection before the system arrives.
Define the load
Confirm your equipment, peak loads and operating hours.
Prepare the site
Check access, ground conditions, available space and anchoring.
Deploy the array
Position and unfold the array using the model-specific procedure.
Commission the system
Complete electrical connections, protection checks and commissioning.
Questions for your site.
Is battery storage included?
Battery storage is configurable. The supplier presents Mini with compact storage options and Plus with larger commercial storage systems. Battery capacity, inverter, switching and monitoring are confirmed in your project quotation.
How quickly can the system be operational?
The manufacturer lists Mini at one minute to unfold and one minute to fold away, with two-person operation. Plus lists ten-minute unfolding and deployment within twelve hours. These figures describe different stages; site preparation, connections and commissioning determine the project programme.
Can OASIS work with a generator or the grid?
The range supports off-grid, grid-connected and hybrid system designs. Integration with a generator or existing supply depends on the selected inverter, controls and protection equipment.
What information is needed for a proposal?
Your location, electrical loads, operating hours, available deployment footprint, transport access, relocation frequency and any storage or backup requirements.
Tell us what needs power.
Share the site, electrical loads and deployment plans for an OASIS project.
