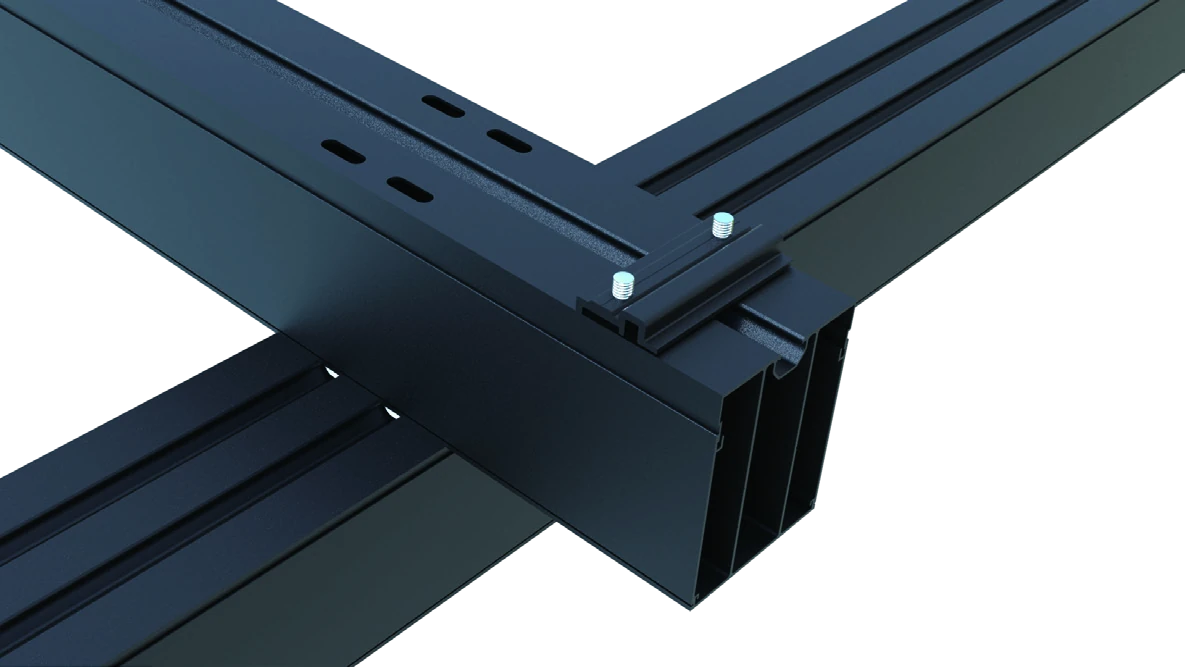

View detailAluminium frame
6005-T5 aluminium alloy is used for the main structure and connectors, with a galvanised carbon steel base.

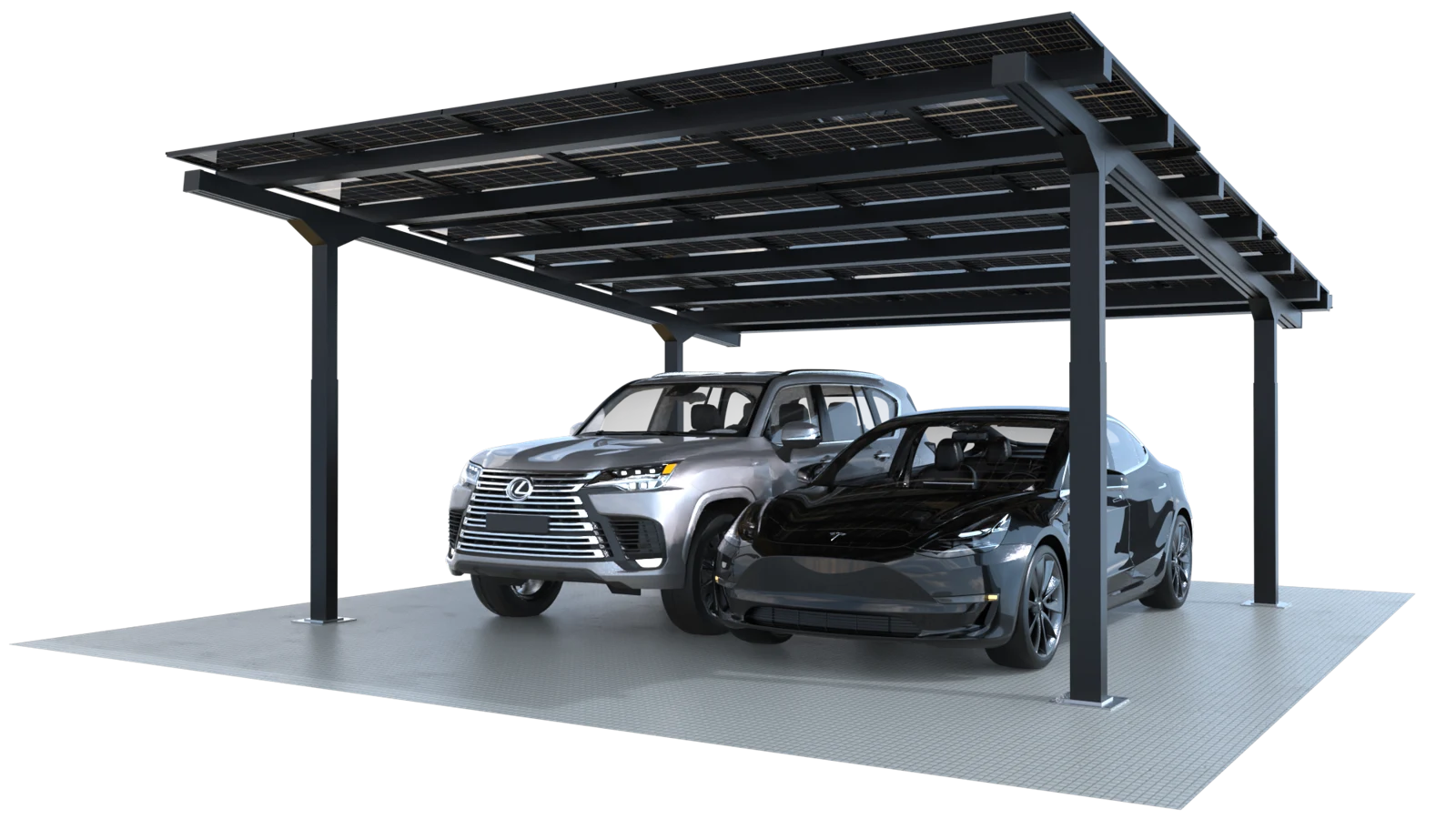

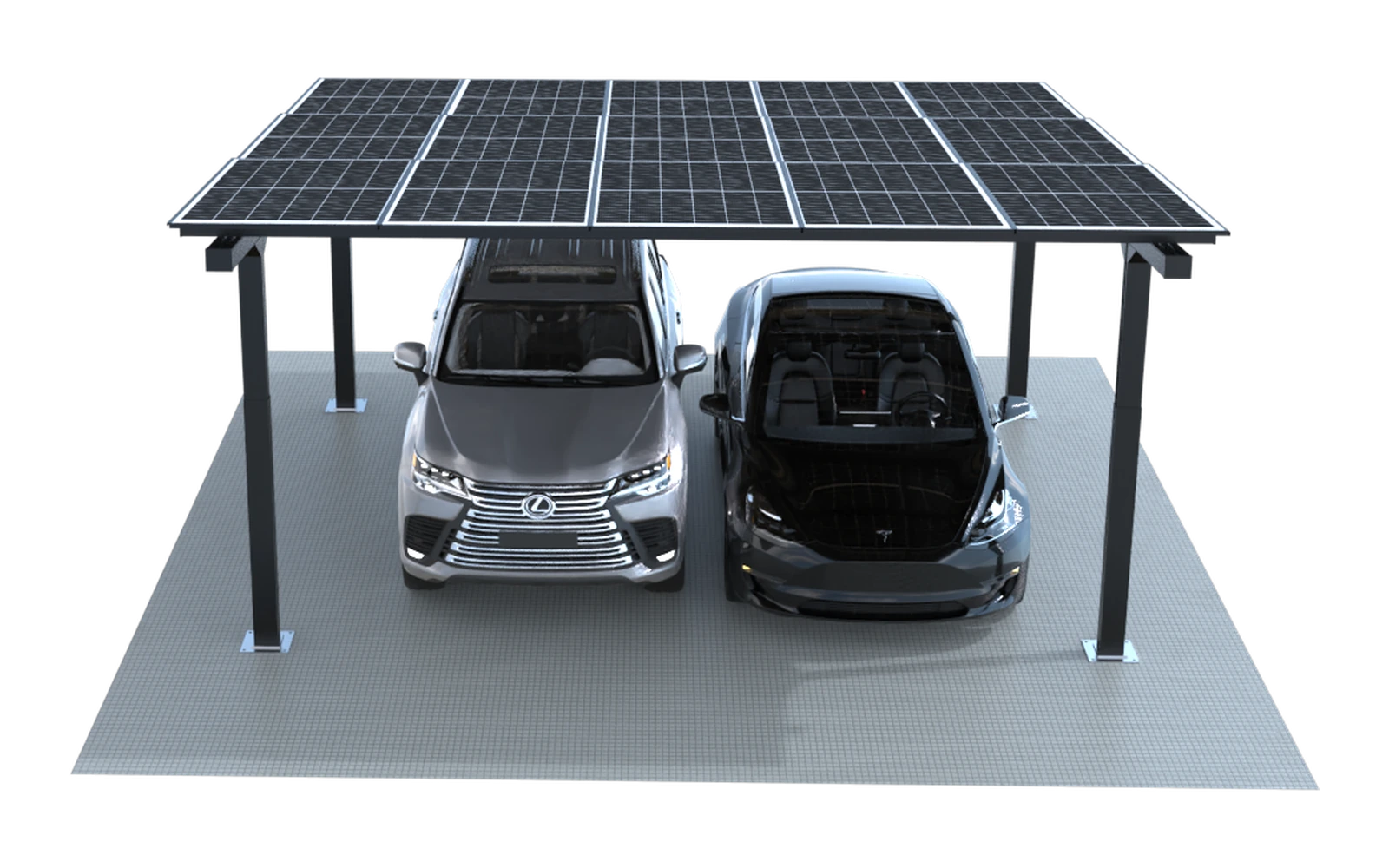

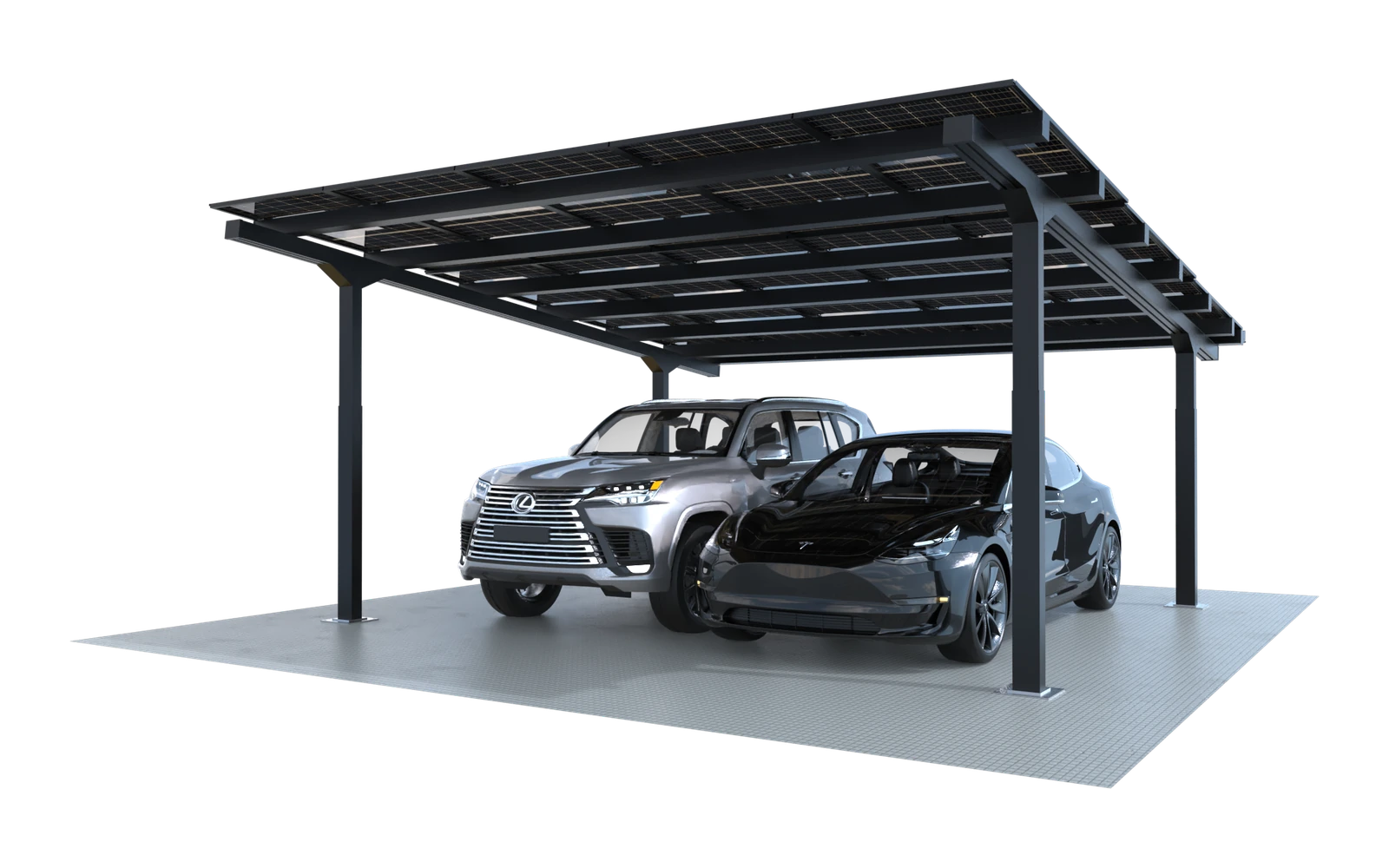

VELAResidential Solar Carport
A refined aluminium solar carport with adjustable clearance and integrated GoodWe Polaris panels.
CHOOSE YOUR LAYOUT
RATED SOLAR CAPACITY8.10 kW
PARKING SPACES2
FRAMEAluminium
ADJUSTABLE CLEARANCE2.0–2.5 m
Aluminium. Built for everyday use.
View detail

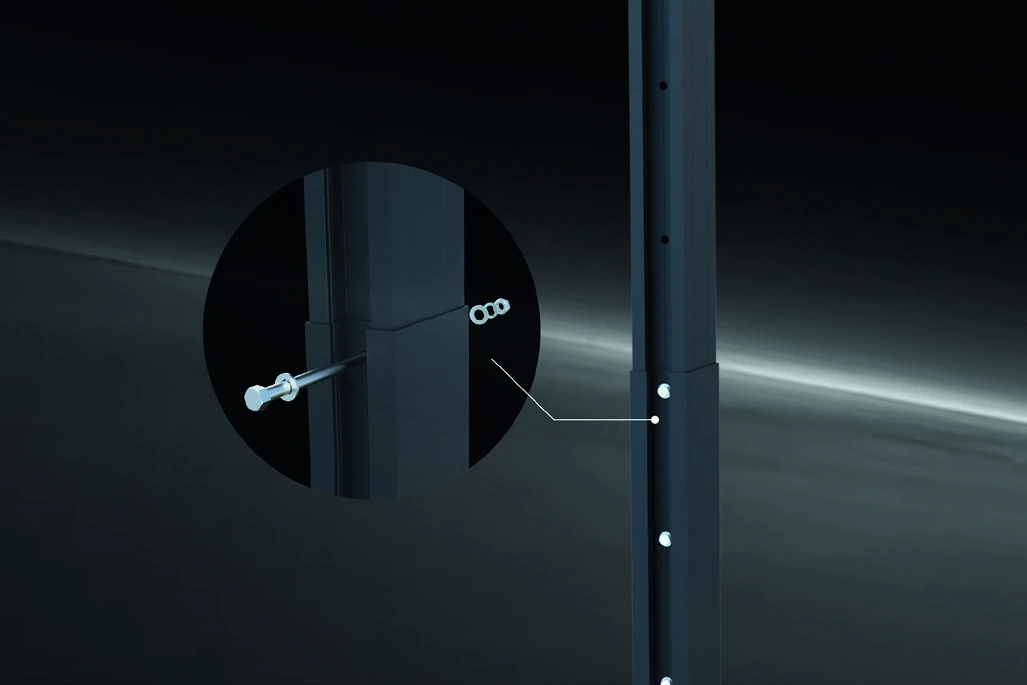

View detailAdjustable clearance
Clearance is adjustable from 2,000 to 2,500 mm, with a peak height range of 3,000–3,500 mm.

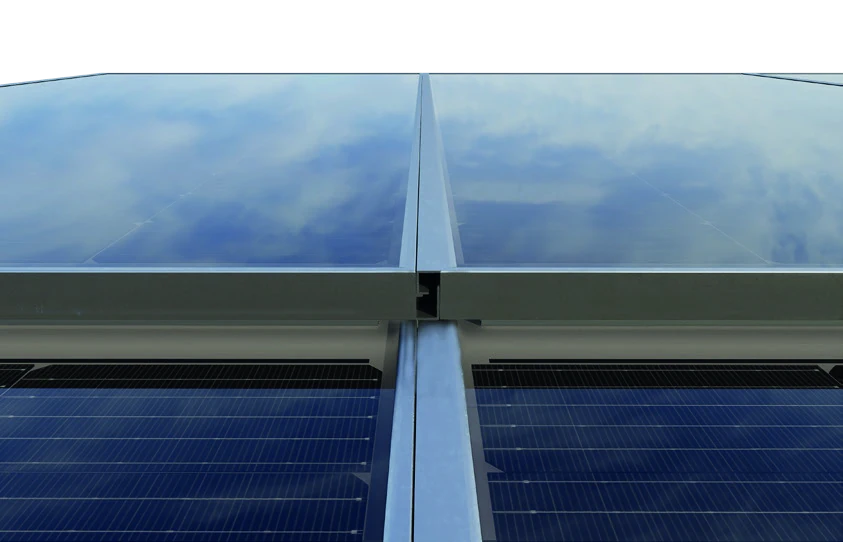

View detailGlue-free waterproofing
Integrated Polaris BIPV panels provide a glue-free waterproof system.

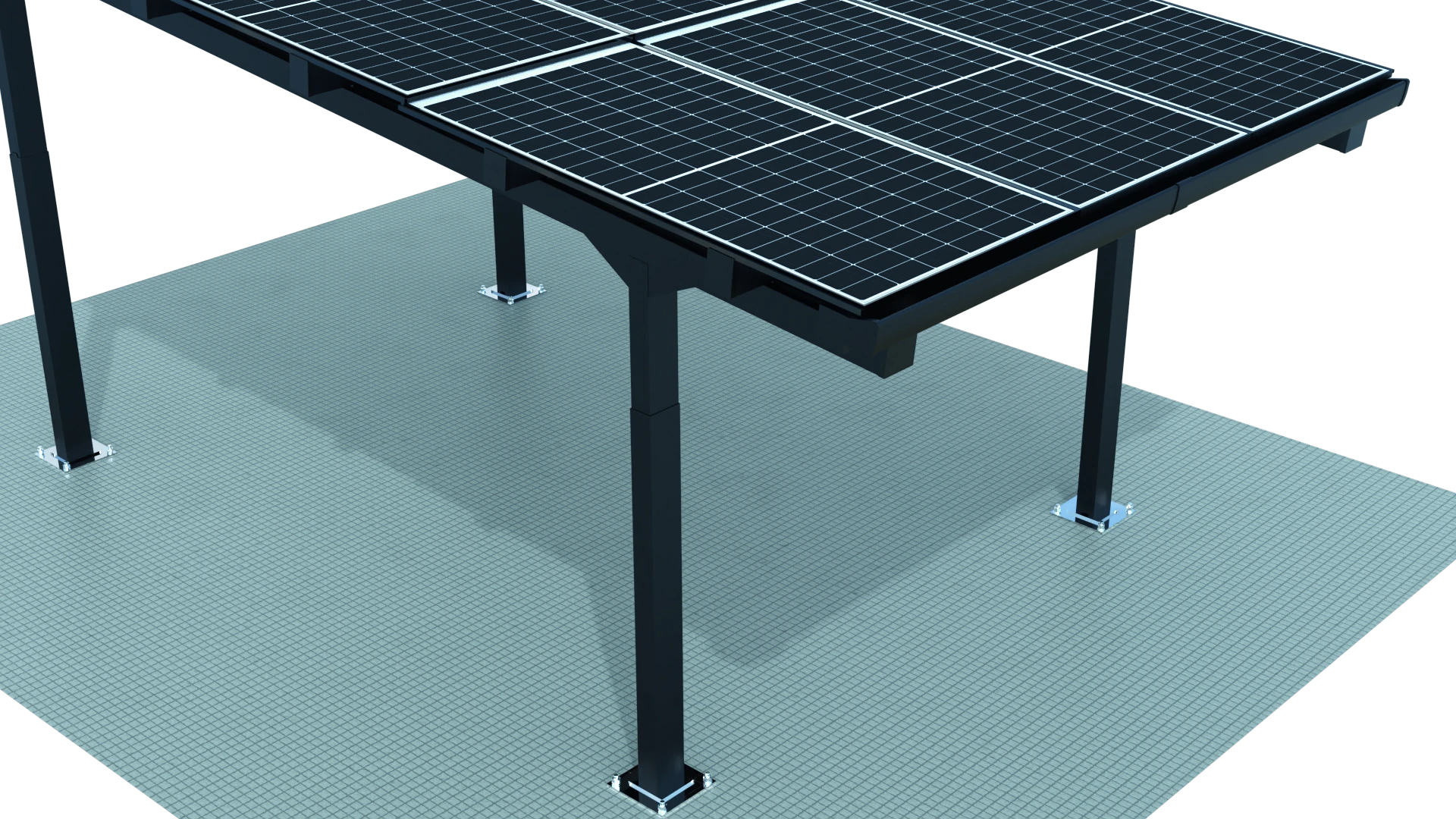

View detailPlanned drainage
A gutter is included. The downpipe is excluded and needs to be considered in the project scope.
Compare the configurations.
| Specification | Single | Double |
|---|---|---|
| Rated solar capacity | 4.86 kW | 8.10 kW |
| Polaris 540 W panels | 9 | 15 |
| Structure length | 6,360 mm | 6,360 mm |
| Structure width | 3,441 mm | 5,735 mm |
| Peak height | 3,000–3,500 mm | 3,000–3,500 mm |
| Adjustable clearance | 2,000–2,500 mm | 2,000–2,500 mm |
Published height ranges are adjustable. Final dimensions, foundations, drainage, electrical integration and site suitability are reviewed for the property. Rated panel capacity is not a forecast of energy generation.
How the system is built.
| Main frame & connectors | 6005-T5 aluminium alloy |
|---|---|
| Base | Galvanised carbon steel |
| Solar panels | GoodWe Polaris · N-Type TOPCon · double glass |
| Waterproofing | Integrated, glue-free BIPV system |
| Drainage | Gutter included; downpipe excluded |
| Product warranty | 15 years; coverage and conditions confirmed in your proposal |
Drag to change view
VELA product brochure
Explore the product range, specifications and structural details.
Common questions
How do I obtain a VELA quotation?
Discuss the location, vehicle dimensions, available space, preferred Single or Double configuration and any photos or plans with UMAX. The team reviews the scope before preparing a proposal.
Can I book the CARINA assessment for VELA?
VELA uses a project discussion and quotation process. The CARINA paid assessment booking is specific to CARINA.
Can EV charging or battery storage be included?
Ask UMAX to review compatible equipment and electrical requirements. Equipment, installation and final inclusions are confirmed in the project proposal.
Discuss your project
Share your location, parking layout and energy requirements with UMAX.
