01

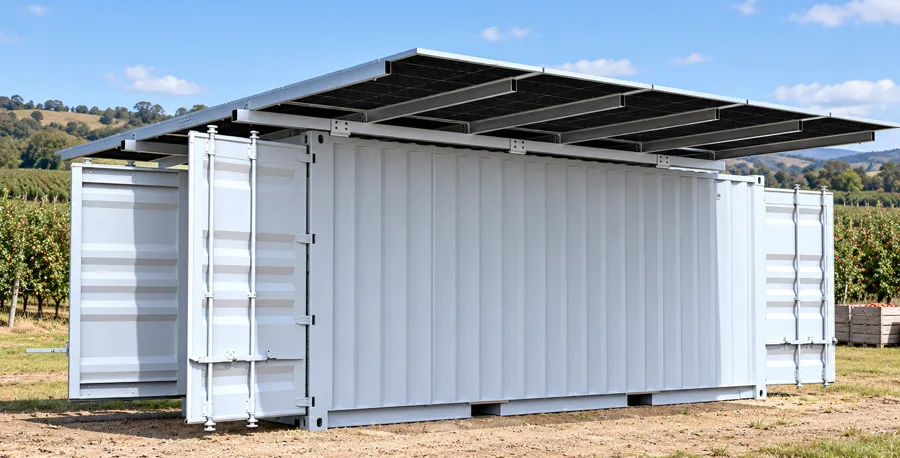

Farms & Rural Properties
Store harvested produce, meat and food supplies closer to where you work.
Discuss your site
Off-Grid Solar
Cold Rooms
Solar + Battery.
Automatic Generator Backup.
Containerised chilled or frozen storage for farms, fisheries and remote sites.
Integrated power. Independent cold storage.
ADJUSTABLE TEMPERATURE
−18°C to +6°CAdjustable temperature range
48 kWhLiFePO₄ battery storage
Up to 10.56 kWpBifacial solar capacity
20ft / 40ftHigh Cube container sizes
Dedicated storage.
Separate equipment.
An insulated cold room keeps your goods separate from the electrical equipment bay.

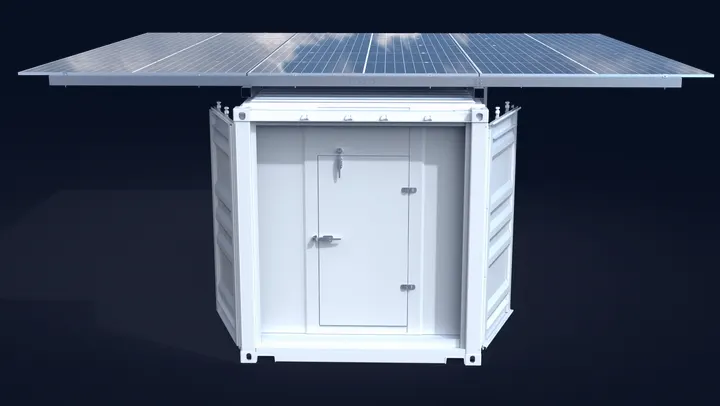

Explore the interior, with space planned for stock, access and airflow.

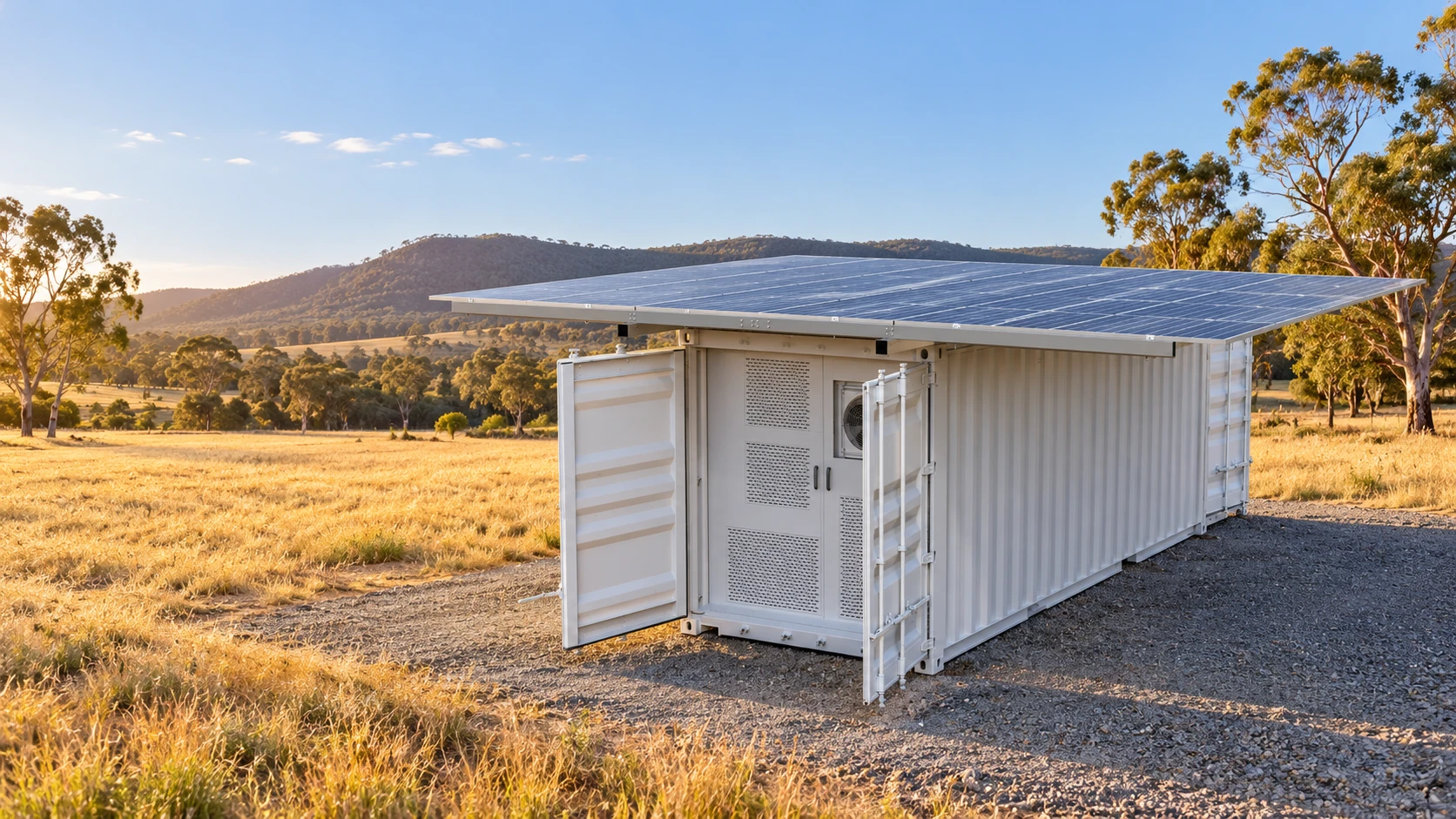

Built for your site.
From the farm gate to the remote worksite, plan cold storage around the way you operate.
02

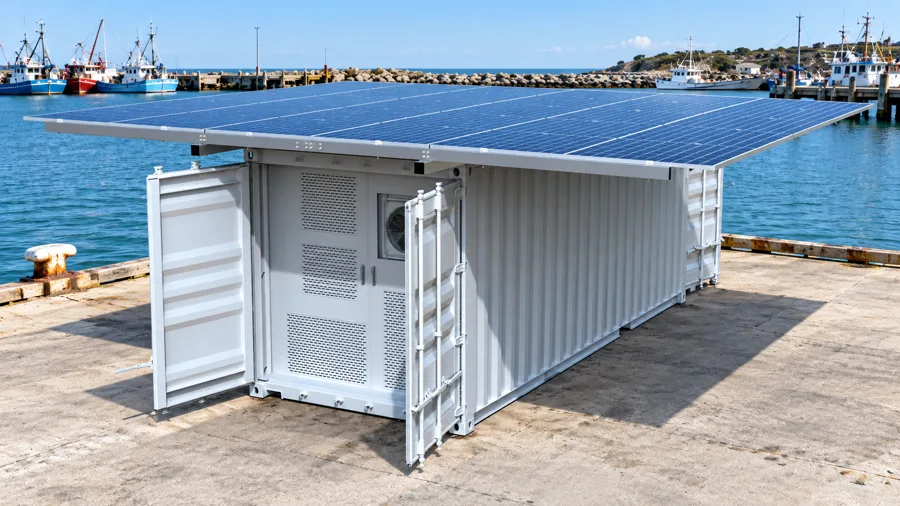

Fisheries & Landing Sites

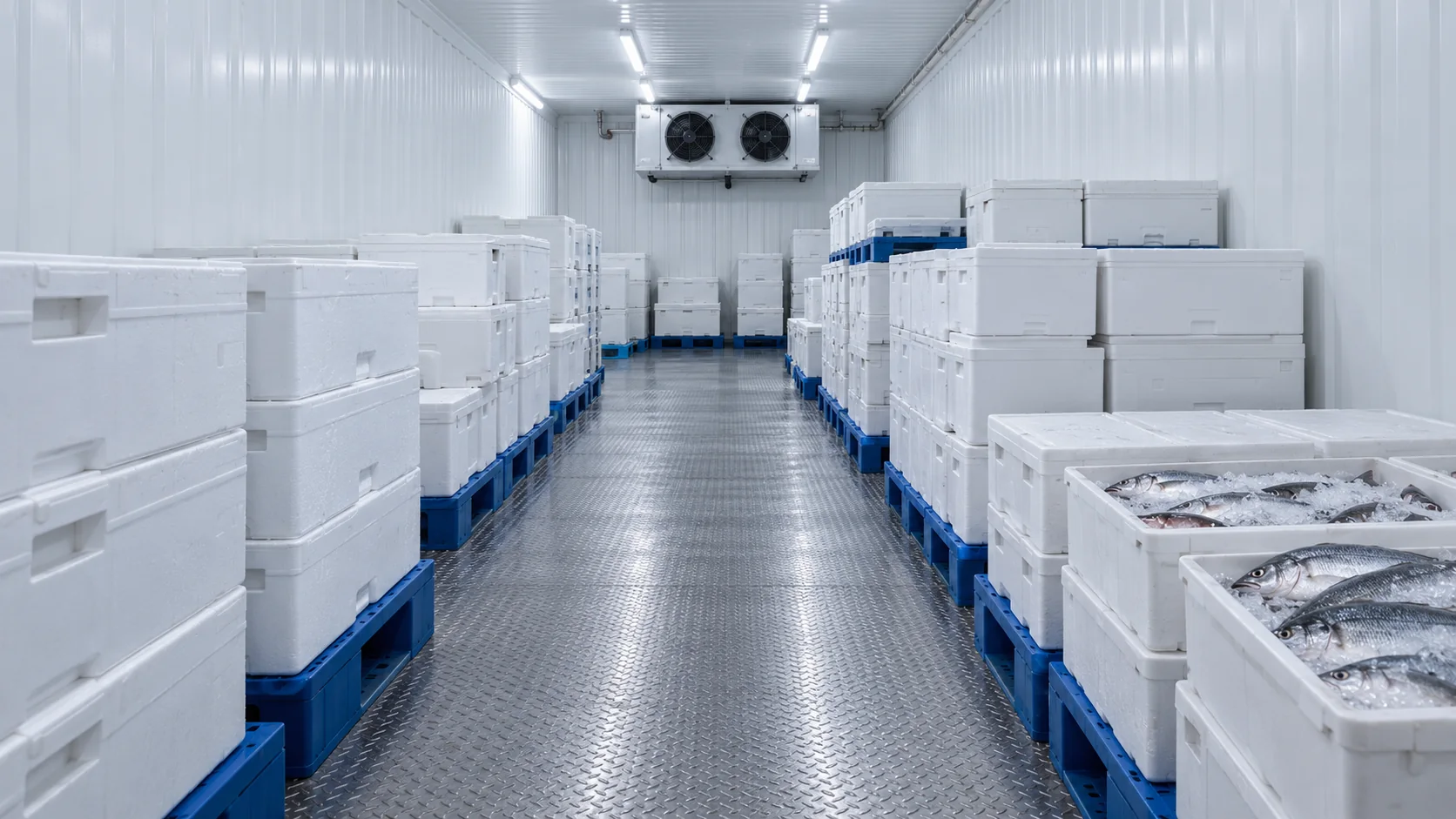

Chilled or frozen storage for seafood at landing points and remote facilities.
Discuss your site
03

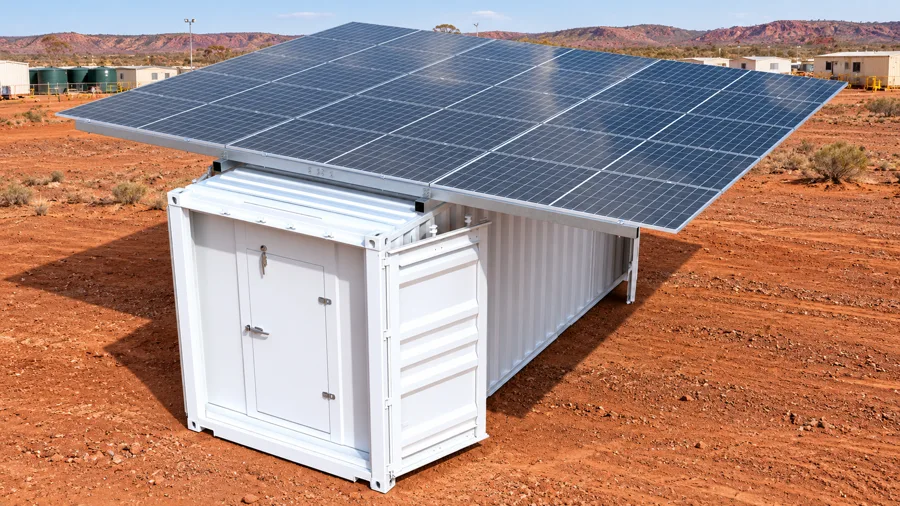

Mining & Remote Camps
On-site food storage for teams working beyond a reliable electricity supply.
Discuss your site
04

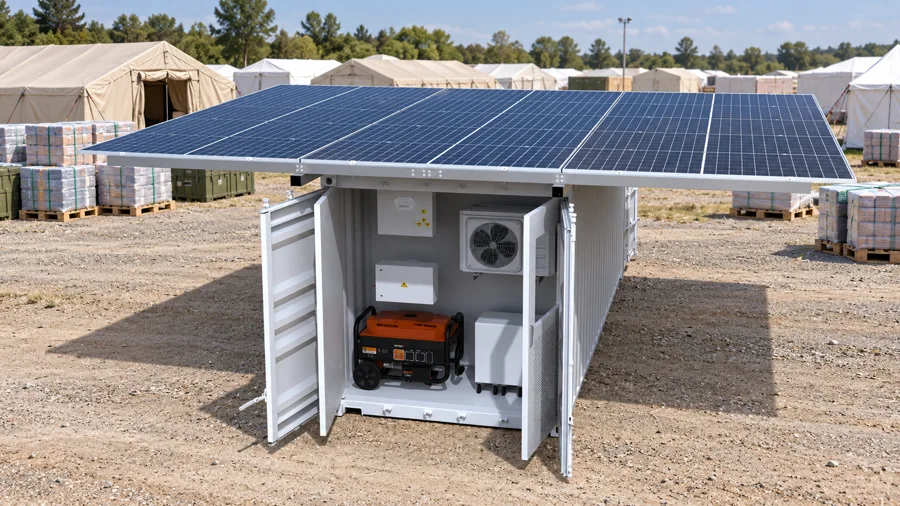

Emergency & Temporary Sites
Containerised cold storage for temporary operations and essential supplies.
Discuss your siteApplication visualisations

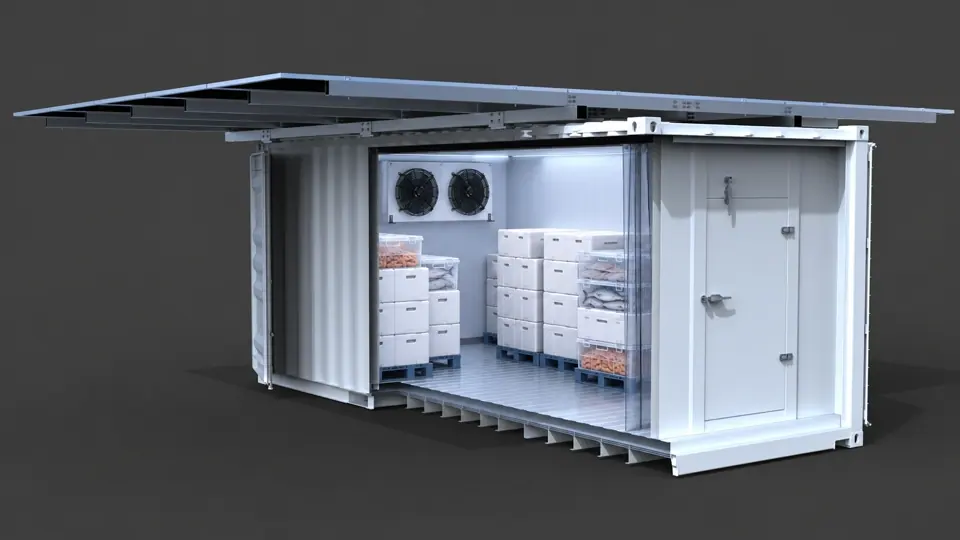

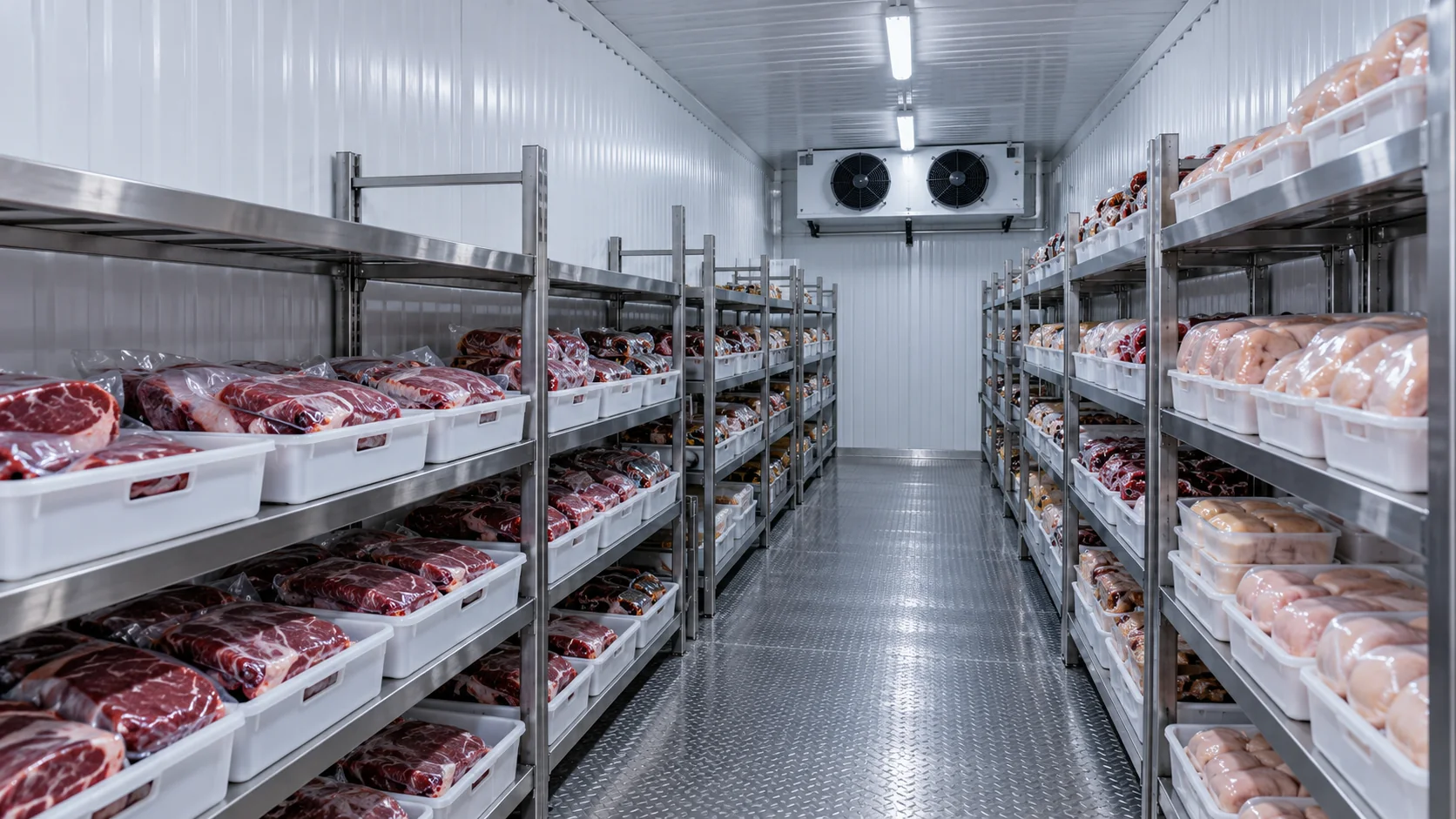

Cold storage for your goods.

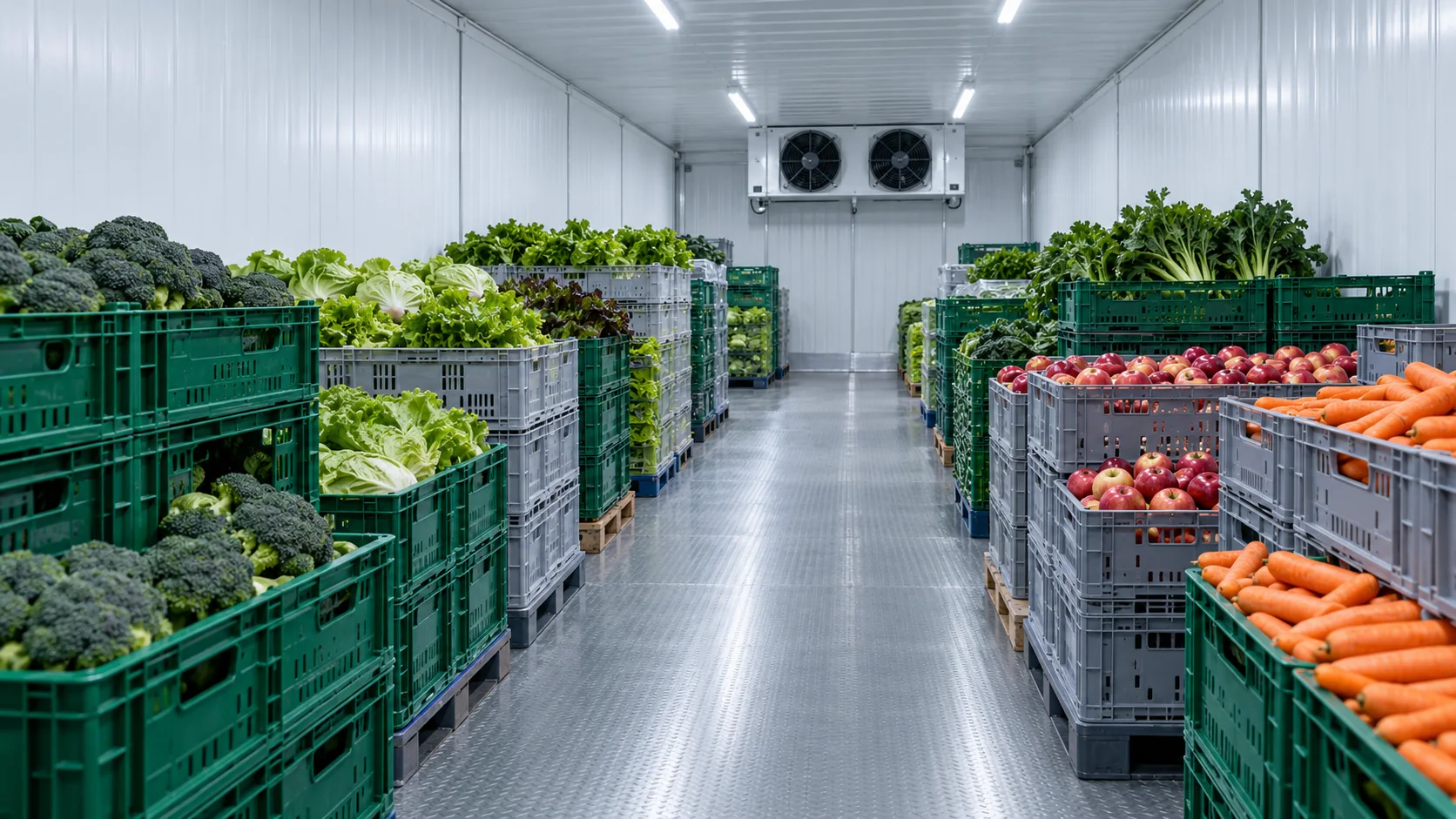

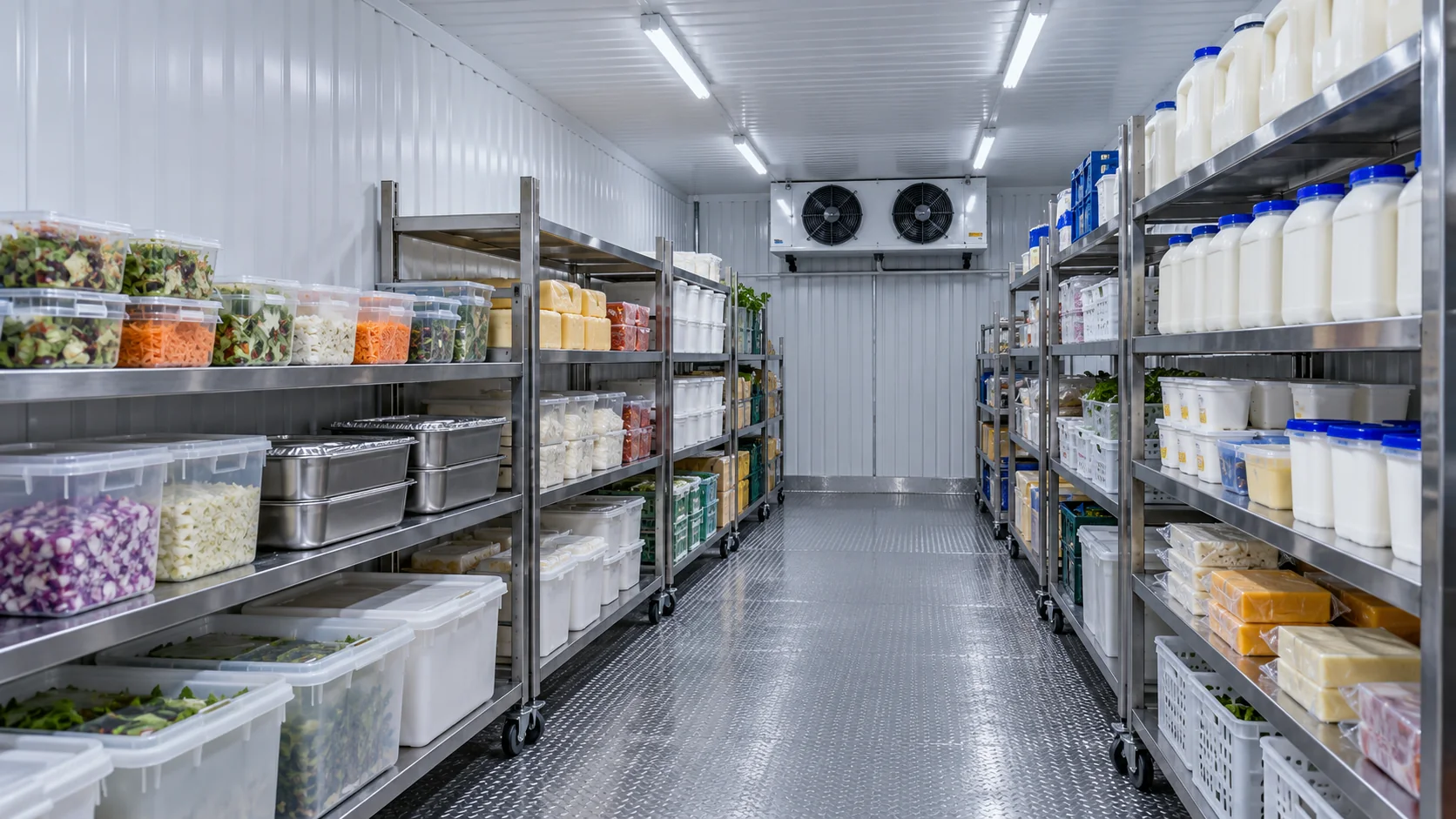

Fresh produce, held close to harvest.
One room. One selected temperature.
Illustrative scenes. Set temperature to suit your goods.
Planning a cold room for your site?Tell us what you need to store and where you operate.
Request a QuoteHow the cold room
stays powered.
Solar first. Battery when needed. Generator backup when required.
Choose the size
for your site.
Two container sizes. The same integrated solar, battery and generator approach.

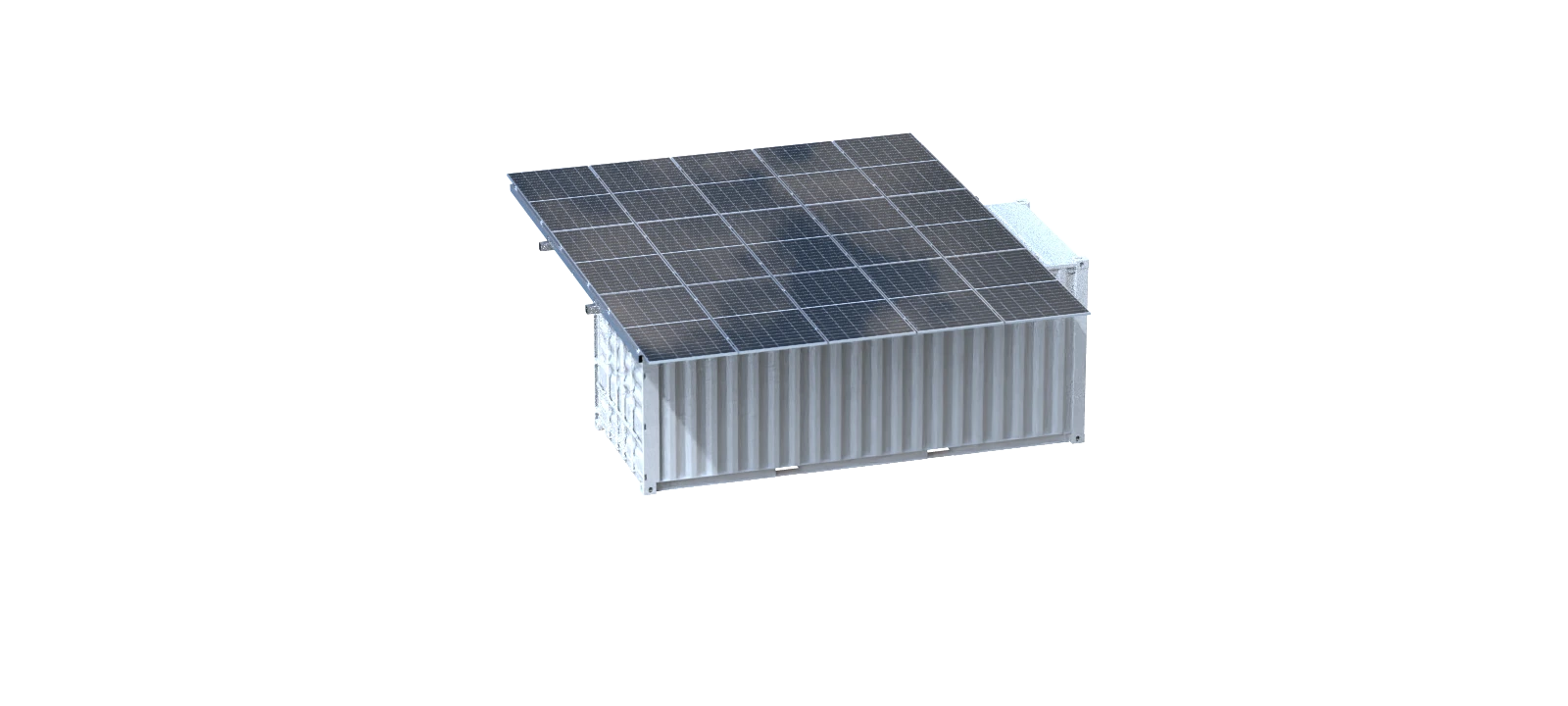

Internal cold room volume
6.058 × 2.438 × 2.896 m L × W × H · Container exterior
For projects with a smaller storage requirement or limited site space.
Discuss 20ft

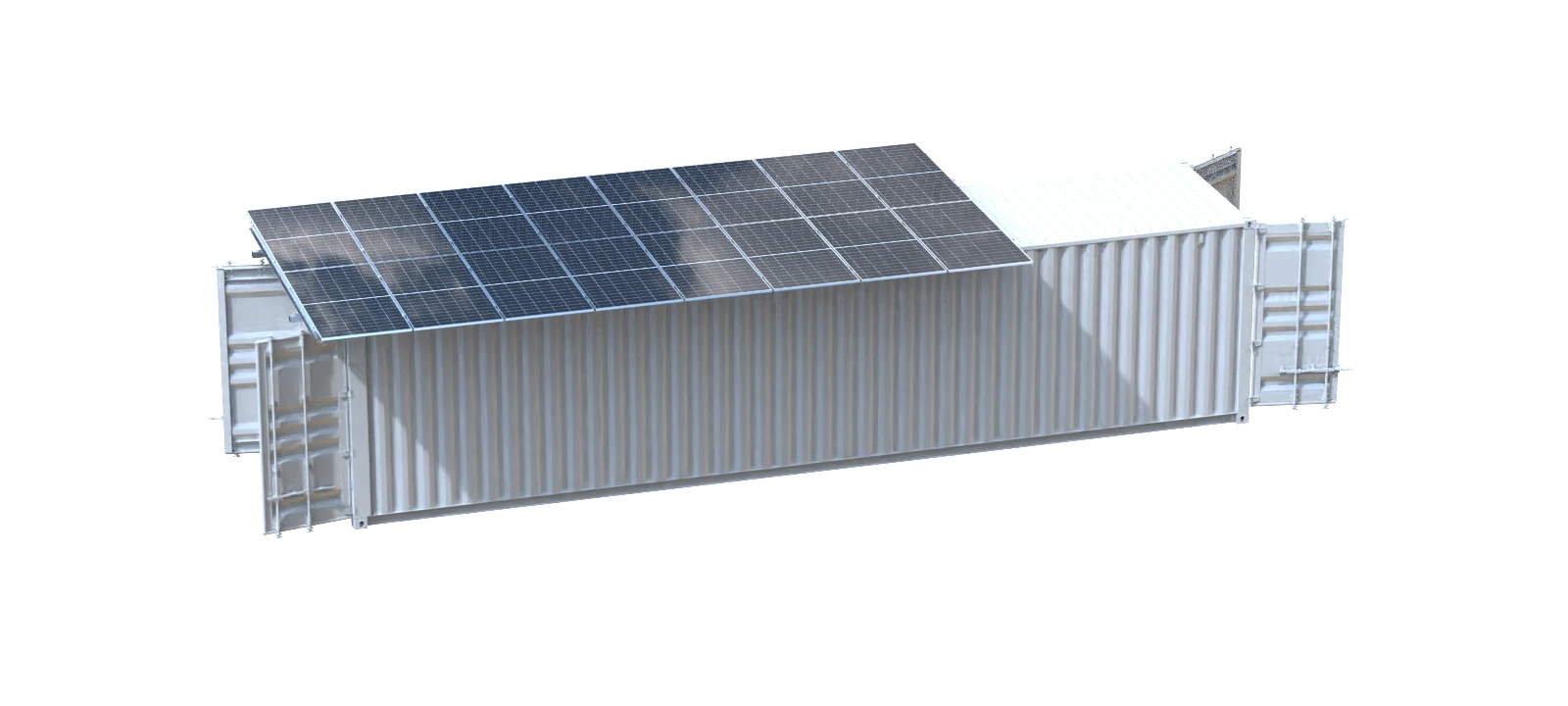

Internal cold room volume
12.192 × 2.438 × 2.896 m L × W × H · Container exterior
For projects with a larger storage requirement.
Discuss 40ftModel views use a matched camera scale. Container dimensions exclude solar arrays and required installation clearances.
20ft & 40ft specificationsSystem capacity, dimensions and equipment
| Specification | 20ft Configuration | 40ft Configuration |
|---|---|---|
| Container type | 20ft High Cube | 40ft High Cube |
| External dimensions (L × W × H) | 6.058 × 2.438 × 2.896 m | 12.192 × 2.438 × 2.896 m |
| Internal cold room dimensions | 4.68 × 2.16 × 2.47 m | 10.52 × 2.16 × 2.47 m |
| Internal cold room volume | 24.9 m³ | 56.0 m³ |
| Temperature range | −18°C to +6°C | −18°C to +6°C |
| Solar PV capacity | 9.9 kWp | 10.56 kWp |
| Battery storage | 48 kWh LiFePO₄ | 48 kWh LiFePO₄ |
| Hybrid inverter | 11 kW | 11 kW |
| Generator with automatic transfer | 5.5 kW with ATS | 5.5 kW with ATS |
| Insulation thickness | 100 mm | 100 mm |
View printable specifications
Internal room volume excludes insulation and the equipment compartment. Allow additional space for the evaporator, access aisles and product stacking. Final configuration and performance are subject to project confirmation.
PRODUCT GUIDE · ENGLISH PDF
Download Product GuideKeep the details to hand.
20ft and 40ft specifications, system configuration and a site-planning checklist.
01 / 04
Equipment layout varies by configuration.
Designed around
reliable cooling.
100 mm PU insulation
Insulated walls, ceiling and floor help reduce heat transfer into the storage space.

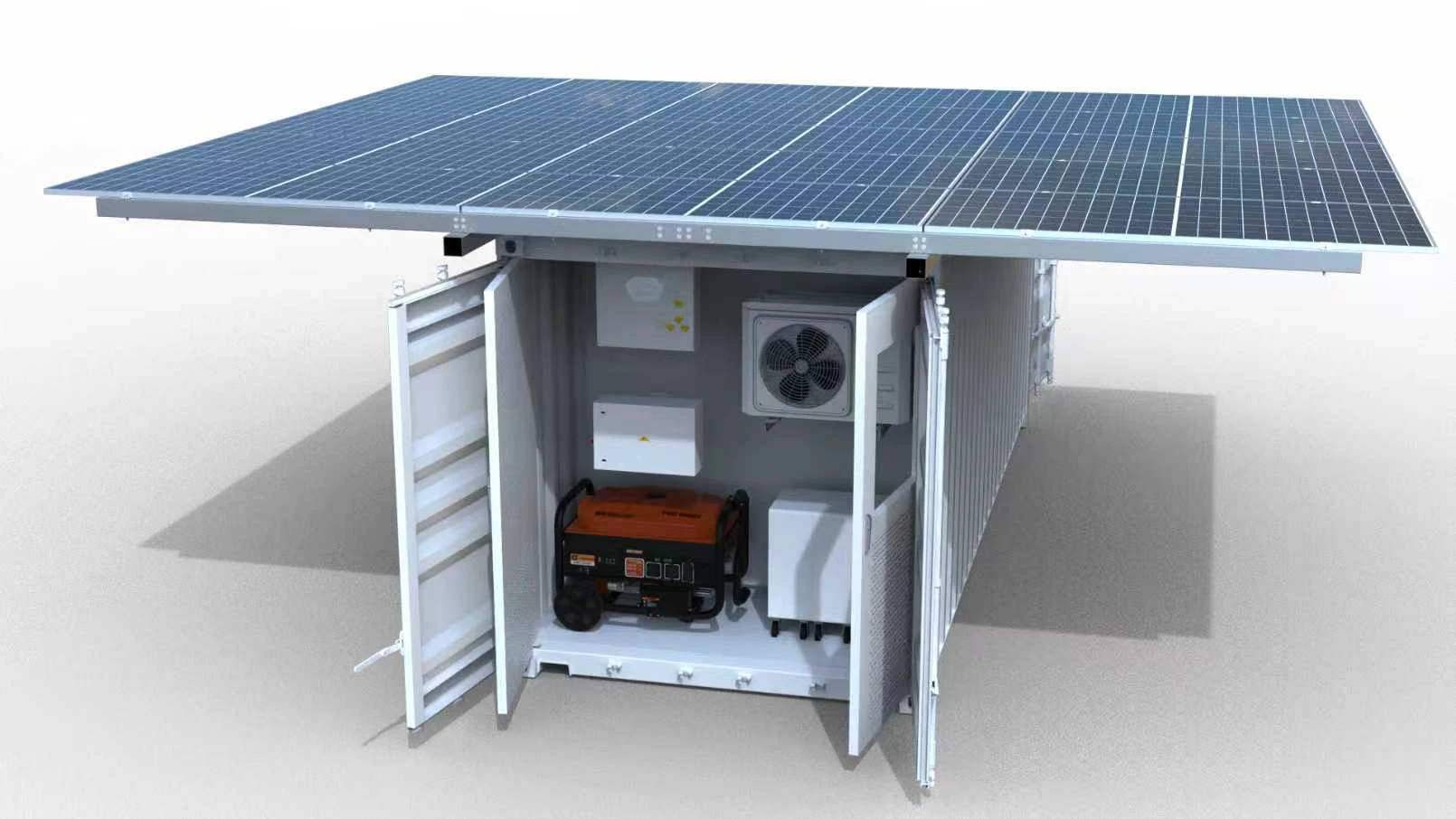

Separate equipment compartment
The electrical equipment bay is physically separated from the cold room.
Insulated door with safety release
An internal safety release and PVC strip curtain support practical day-to-day access.
Adjustable chilled or frozen storage
Set one storage compartment to the temperature your goods require.

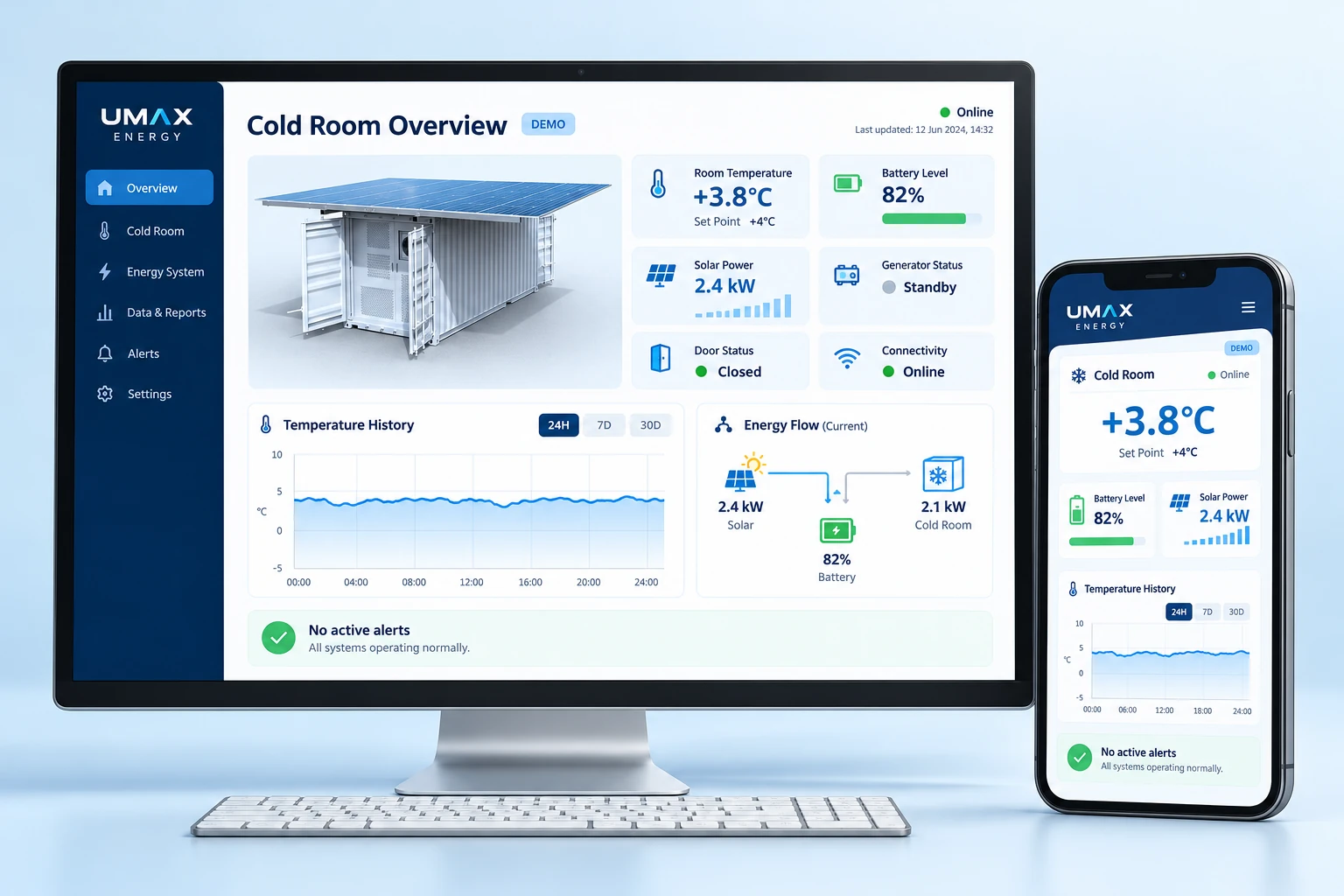

Optional remote monitoring
View your cold room’s temperature and energy status from a computer or phone.
Alerts and connectivity options depend on your project configuration.
Illustrative interface. Monitoring package and app may vary.From site to cold storage.
Plan the practical details before your cold room arrives.
- 01
Prepare the site
Level foundation, drainage and access for delivery.
- 02
Position the room
Plan freight, lifting and container placement.
- 03
Connect the system
Assemble the solar structure and complete connections.
- 04
Check & commission
Test operation and set the storage temperature.
Freight, lifting, installation and support responsibilities.
Share your location, site access and preferred room size.Frequently asked
questions.
Have a site-specific question? Tell us where you operate and what you need to store.
Talk about your projectCan it operate without mains power?
Yes. The system integrates solar panels, battery storage and a diesel backup generator for operation without a mains connection. The final configuration should be checked against your location and cooling requirements.
What happens at night or during cloudy weather?
The battery supports operation when solar output is low or unavailable. When required, the generator starts automatically to support refrigeration or recharge the battery.
How long can it run on battery power?
Battery runtime depends on ambient temperature, the set temperature, stored goods, incoming product temperature and door-opening frequency. Share your operating conditions for a project-specific assessment.
Can chilled and frozen goods be stored at the same time?
The standard unit has one cold storage compartment, adjustable from −18°C to +6°C. It is not a simultaneous dual-temperature room. Select a setting appropriate for your goods.
What preparation does the site need?
Provide a level, load-bearing foundation, suitable drainage and access for delivery and lifting. Allow space for the solar array, ventilation and maintenance. Installation includes solar structure assembly, connections and commissioning.
Is remote monitoring included?
Remote monitoring is optional. The monitoring package can collect temperature and energy data and provide alerts. Connectivity and any external satellite terminal or subscription are confirmed separately.
How do I choose between 20ft and 40ft?
Consider the goods you store, the space required for access and airflow, and your daily incoming stock. Share your requirements and we can discuss the appropriate configuration.
What is included in the system?
The proposed configuration brings together the containerised cold room, refrigeration, solar panels, battery storage, hybrid inverter and generator backup. Equipment and scope are confirmed in your project quotation.
Can it be delivered to a remote location?
Delivery is assessed for each site. Road access, lifting arrangements, foundations, location and the final installation scope need to be confirmed.
What servicing and warranty are available?
Contact our team for the applicable warranty terms and to discuss servicing arrangements for your location and configuration.
Can it cool newly harvested produce?
Cooling needs depend on the type and quantity of produce, incoming temperature, target temperature and daily loading. Share these details so the system can be assessed for your application.
Plan your cold
storage project.
Tell us where you operate and what you need to store. Our team can help you explore the right configuration for your site.
A useful starting point.
Share what you store, how much arrives each day and your target temperature. This helps us discuss room size, cooling demand and the work required at your site.
